Made To Order (MOQ Applicable)
SKU
SM7825ERTC-BK

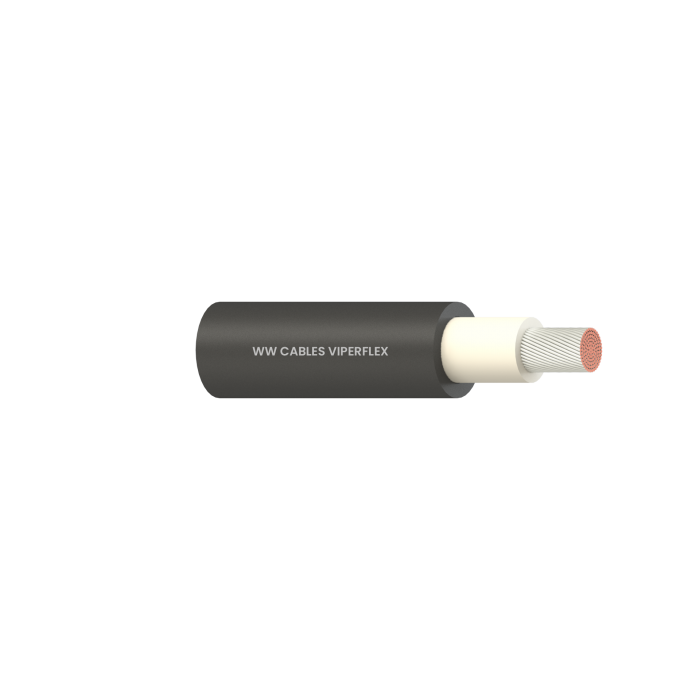

1C 25mm2 TC Cl5/EPR/CPE 1KV H07
Features
- 0.6/1kV Flexible Tinned Copper
- EPR insulated, CPE sheathed
- White cores with Black sheath
- Submersible
Applications
Mostly used as power electric cable for equipment in industry work such as boilers, heating plates, hand lamps, transportable motors etc. H07 cables can be installed at medium mechanical stress in dry, damp and wet areas. They are also submersible which can be used for submersible pumps.
| Part No. | SM7825ERTC-BK |
|---|---|
| Cable Type | Single core |
| Conductor Material | Flexible Tinned Copper |
| Number of cores | 1C |
| Nominal Area | 25mm2 |
| Nominal Area | 25mm2 |
| Insulation material | EPR |
| Sheath material | CPE |
| Voltage Rating | 0.6/1kV |
| System Type | Single Phase, Three Phase |
| Max Conductor Temperature | 90°C |
