In Stock
SKU
AL240X2H2

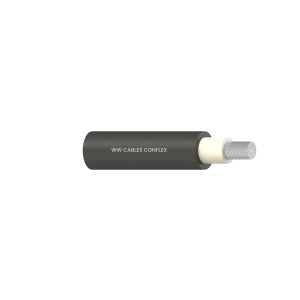

1C 240mm2 Flexible AL/XHF-110/HFS-110-TP 1kV BLK
Features
- 0.6/1kV Flexible Aluminium
- X-HF-110 insulated, HFS-110-TP sheathed
- White core with black sheath
Applications
Mostly used for buildings and industrial plants where not subject to mechanical damage. Suitable for installation indoor/outdoor, enclosed in conduit, and in underground duct.
| Part No. | AL240X2H2 |
|---|---|
| Cable Type | Single core |
| Conductor Material | Flexible Aluminium |
| Number of cores | 1C |
| Nominal Area | 240mm2 |
| Nominal Area | 240mm2 |
| Insulation material | X-HF-110 |
| Sheath material | HFS-110-TP |
| Voltage Rating | 0.6/1kV |
| System Type | Single Phase, Three Phase |
| Max Conductor Temperature | 110°C |
