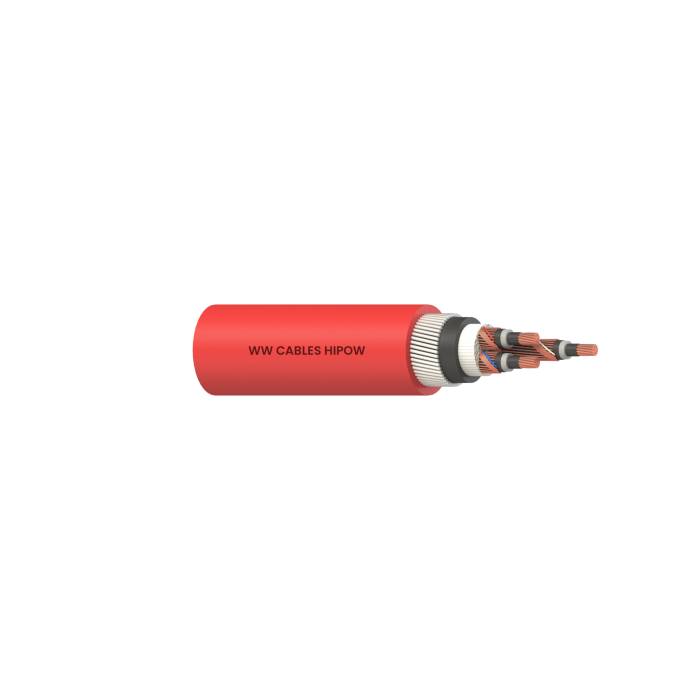

3C 70mm2 BC Cl2/XLPE/CWS(10.1kA/s)/PVC/SWA/PVC 5V90 6.35/11kV RED
In Stock
SKU
MV11C10X3C70A-RED
Features
- 6.35/11kV Compacted Copper
- XLPE insulated, PVC 5V90 sheathed
- Copper wire screened (Heavy duty)
- Galvanised steel wire armour
- Red sheath
Applications
This type of cables are mostly used as feeder electric cable for power distribution network where heavy duty protection is required, especially for providing mechanical strength to avoid damage from cutting. They are suitable for installation on heavy mechanical stress dry, indoors, outdoors, underground areas. The cables can be buried directly in the earth.
| Part No. | MV11C10X3C70A-RED |
|---|---|
| Cable Type | MV |
| Conductor Material | Copper |
| Number of cores | 3C |
| Nominal Area | 70mm2 |
| Nominal Area | 70mm2 |
| Insulation material | XLPE |
| Sheath material | PVC |
| Voltage Rating | 6.35/11kV |
